DRL and Reverse Light HID Bulbs and Ballast Installation

6000K HID Reverse light and DRL Light Bulb Installation Instructions

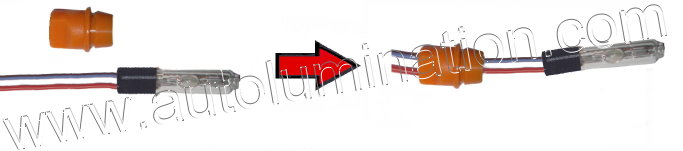

Step 1
Find the silicone grommet and HID bulb.  With the tapered head of the grommet facing the HID bulb, thread the two wires of the HID bulb thru the two small holes in the grommet.
6000K HID Reverse light and DRL Light Bulb Installation Instructions

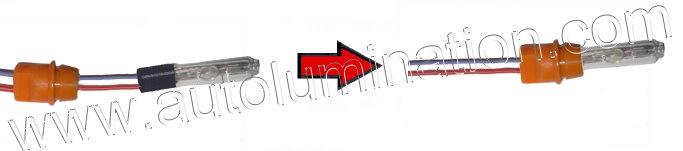

Step 2
Find the silicone grommet and HID bulb.  With the tapered head of the seals facing as shown, slide one seal up over each of the wires as shown.
6000K HID Reverse light and DRL Light Bulb Installation Instructions

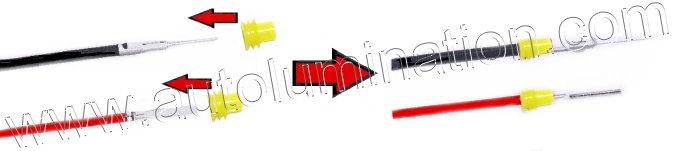

Step 3
Find the silicone seals.  With the tapered head of the grommet facing the HID bulb, thread the two wires of the HID bulb thru the two small holes in the grommet.
6000K HID Reverse light and DRL Light Bulb Installation Instructions

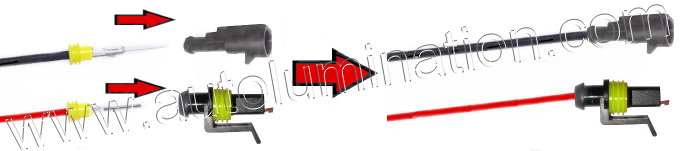

Step 4
Find the male and female connectors.  The contacts on the end of the wires will slide thru the connectors as shown.  Assure that the black wire slides onto the female connector and the red wire slides onto the male connector.   The contacts must be oriented properly so that the will lock into position.  If they do not lock, slide the connector back off slightly, rotate a little and try again to get the connector to lock.  Keep trying until you get the contact to lock onto the connector.
6000K HID Reverse light and DRL Light Bulb Installation Instructions

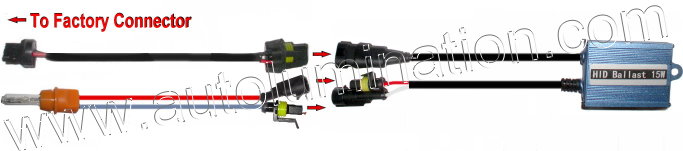

Step 5
Find the Power harness.  The power harness will connect to the factory bulb connector that was removed from the original factory installed bulb.  The other end will connect to the ballast and provide power to the ballast when the light is switched on.  The HID bulb connects to the remaining connectors on the ballast.

The ballast should be mounted to the car so that it is not in an area that will overheat or get too hot.

The grommet on the HID bulb will press into the hole where the factory bulb  was removed press the bulb into place until the ribbed area in the center is pressed up against the edge of the hole in the factory light housing.  This should form a seal and also hold the HID bulb firmly in place.
